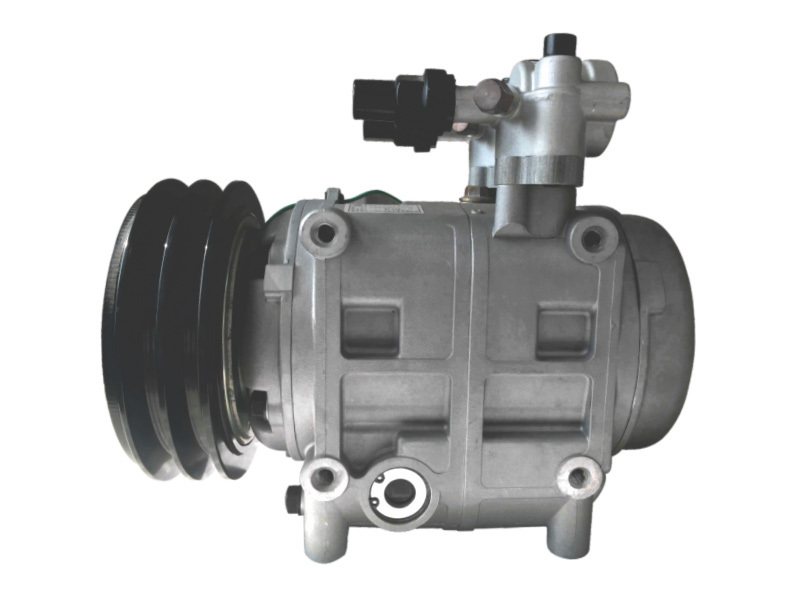

Swash-plate Compressor JSP480

JSP480 series of compressors achieves compact structure and high reliability by adopting two-way swash-plate, and it is suitable for 8 to 10-meter-long buses.
Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
Category
Back
1
Description
Parameters

  JSP480 series of compressors achieves compact structure and high reliability by adopting two-way swash-plate, and it is suitable for 8 to 10-meter-long buses.

1

Item

Parameter


Core



Displacement Per Rotary

478ml/r

NO of Cylinders

10pcs

Cylinders Port Diameter

42mm

piston Travel Route

36mm

Weight(without clutch)

13kg

Max Rotary speed

5000r/min

Refrigerant

R134a

Lubricant

ZXL-100X(DH-PS)


Clutch

Power Consumption

60W

Voltage Rating

24V
