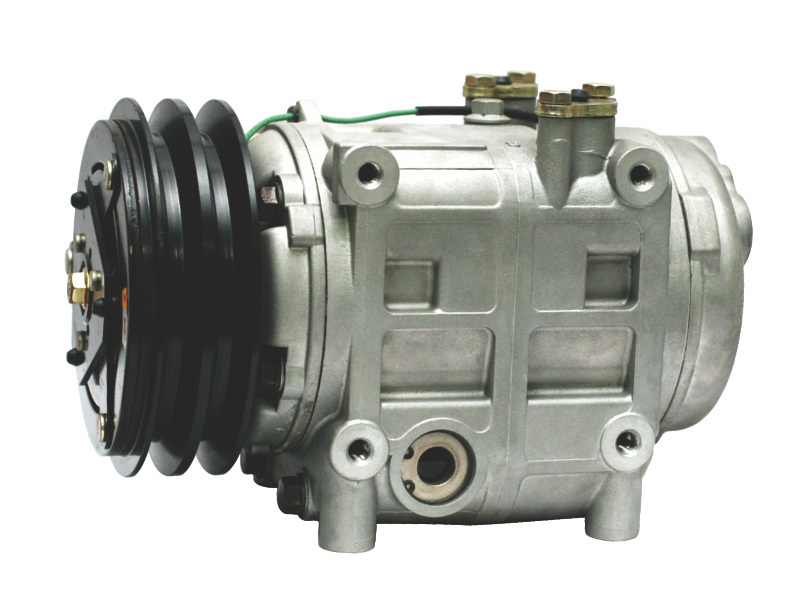

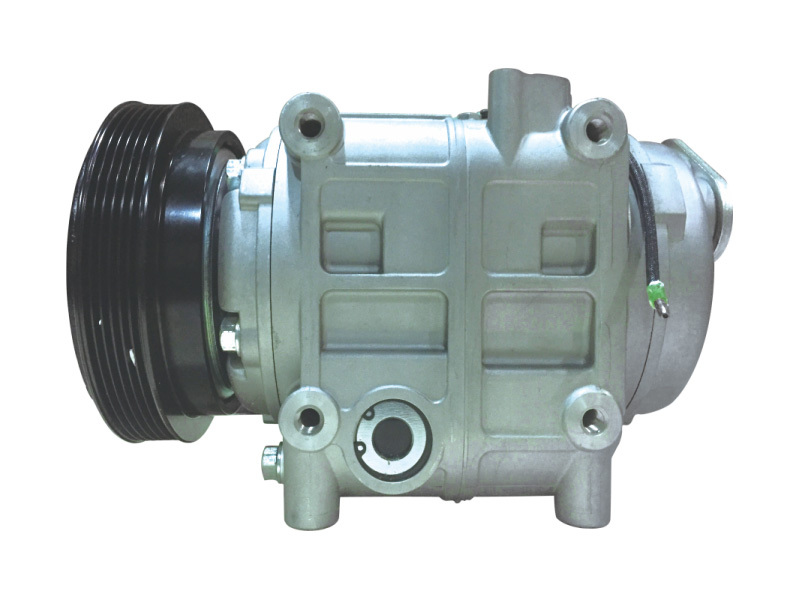

Swash-plate Compressor JSP320

JSP320 series of compressors achieves compact structure and high reliability by adopting two-way swash-plate, and it is suitable for 6 to 8-meter-long buses.
Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
Category
Back
1
Description
Parameters

  JSP320 series of compressors achieves compact structure and high reliability by adopting two-way swash-plate, and it is suitable for 6 to 8-meter-long buses.1

Item

Parameter







Core

Displacement Per Rotary

313ml/r

NO of Cylinders

10pcs

Cylinders Port Diameter

36mm

piston Travel Route

32mm

Weight(without clutch)

9.5kg

Max Rotary speed

6000r/min

Refrigerant

R134a

Lubricant

ZXL-100X(DH-PS)


Clutch

Power Consumption

50W/60W

Voltage Rating

12V/24V
